CORKING / CAPPING
Corkers - Cappers

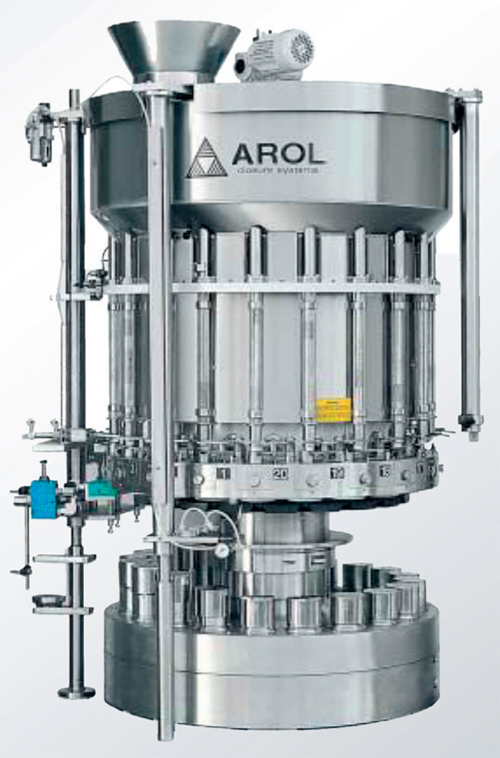

ROTARY CORKERS / CAPPERS

TSR CORKER natural corks
Rotary corker for the application of natural corks on glass wine bottles.

TSF CORKER natural champagne cork
Rotary corker for the application of natural champagne corks on glass champagne bottles.

TSR/F CORKER natural cork/champagne cork
Rotary corker for the application of natural corks for wine or champagne corks on glass wine bottle.

TVA CAPPER aluminum screw caps
Rotary CAPPER with threading heads for the application of aluminum R.O.P.P. and R.O. screw caps on glass, PET, and PVC bottles.

TVA-C CAPPER aluminum screw caps, with vacuum
Rotary CAPPER for the application of aluminum ROPP screw caps after creating light vacuum in the neck of the glass bottles.
The vacuum values attainable can be adjusted according to the actual needs of the product to be bottled.

TPK CAPPER pre-threaded caps, application with Pick & place system
Rotary CAPPER with magnetic clutch heads and pick & place device for the application of pre-threaded plastic screw caps on glass, PET, and PVC containers.

CAPPER pre-threaded caps, application with Pick & place on bottles, jars, canisters, etc.
Rotary CAPPER with magnetic clutch heads and pick & place device for the application of special pre-threaded caps on special glass, PET, AND PVC container.

TPP CAPPER press caps, application with Pick & place on bottles, jars, canisters, etc.
CAPPER for the application of plastic press caps through Pick & Place on glass, PET, PVC bottles or special containers such as jars, canisters, etc.

TTS CORKER T-corks / STOPPERS
Rotary corker with pressure heads with independent jaws for the application of plastic champagne corks and T-corks (natural cork body and plastic or pre-turned heads).

TCR CAPPER crown caps on glass containers
Rotary CAPPER with pressure heads and cone for permanent deformation of the closure, for the application of crown caps on glass bottles.

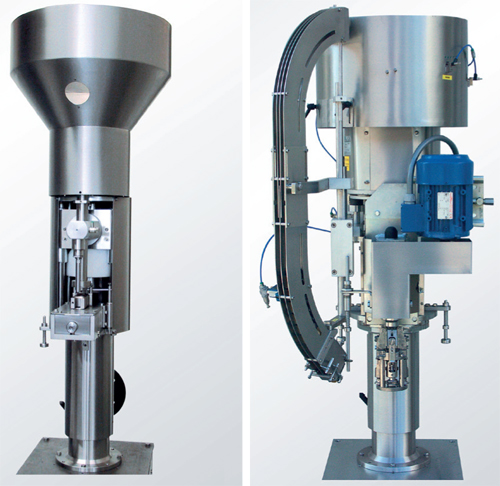

SINGLE-HEAD CAPPERS

All corkers are available in single-head versions for throughputs up to 2800b/h.

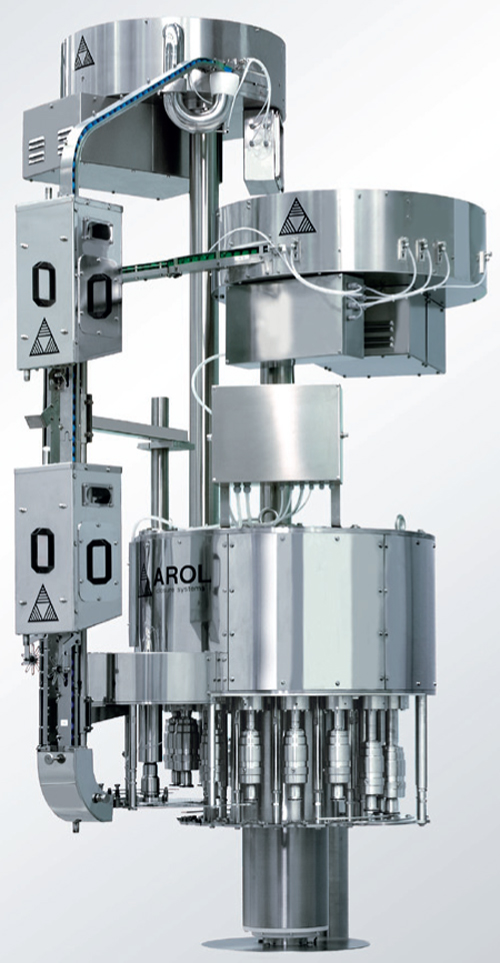

REVOLVING SINGLE-HEAD CAPPERS

This type of machine can be also supplied in its revolving version combining two different closing systems on a single-turret, e.g. aluminum screw caps (VA) and natural cork (SR). Other combinations of closing systems are available depending on the customer’s needs..

Abtechno - Testina PK, a frizione magnetica, per capsule in plastica. Abtechno - Testina SSC per l’applicazione capsula in alluminio ROPP Abtechno - Gruppo smontabile tasselli compressori per tappi in sughero. Abtechno - Chiusura tappi corona disponibile.

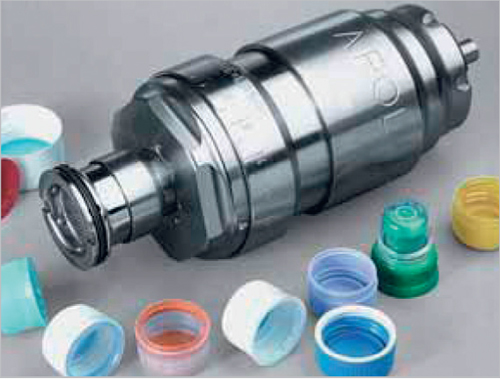

Magnetic clutch PK head for plastic caps.

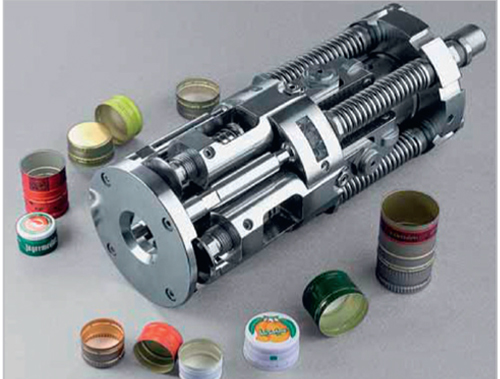

Roll-on head SSC for aluminum ROPP closures.

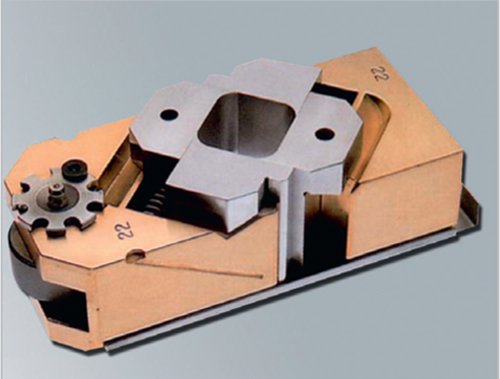

Demountable compression jaw assembly for natural corks.

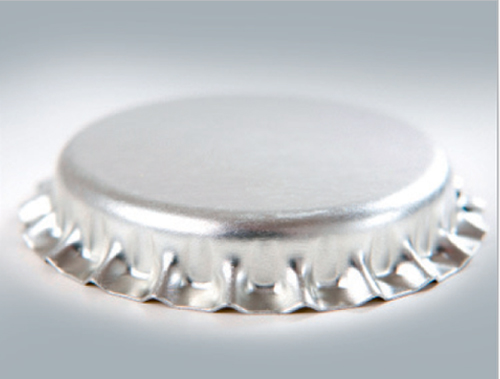

Crown caps closures available.

INDICATIVE THROUGHPUTS

CLOSING HEADS

1 3 4 5 6 8 10 12 16

NATURAL CORKS (SR - SF - RF)

2800 4500 6000 - 9000 12000 15000 18000 24000

ALUMINUM SCREW CAPS (VA)

2800 6000 8000 10000 12000 16000 20000 24000 32000
PLASTIC PRE-THREADED CAPS (PK) 2800 6000 8000 10000 12000 16000 20000 24000 32000

PRETHREATED CAPS (VF-PP)

2800 6000 8000 10000 12000 16000 20000 24000 32000

PLASTIC PRESS CAPS (PK-TS-L)

2800 6000 8000 10000 12000 16000 20000 24000 32000
CROWN CAP 2800 5500 8000 10000 12000 18000 22000 27000 36000

These data are not binding. ARVINOIL company reserves the right to make any modifications it deems necessary without warning
