| GENERAL |
|

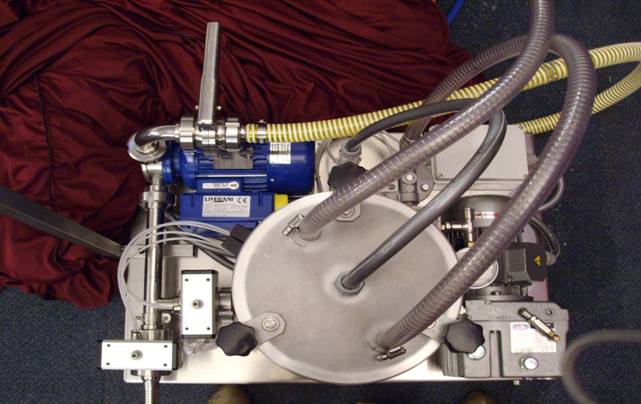

Automatic rotary high vacuum filler for oil built with AISI-304 stainless steel, including high vacuum depression system with 12mc/h vacuum pump, suitable for high density liquids. Includes: six filler nozzles (of standard 15mm diameter) with mechanical filling level adjustment and six plates mounted on pneumatic pistons, two star wheels and one counter star wheel suitable for cylindrical and/or square type bottles. Product loading system by pneumatic actuator throttle valve and electronic probes for automatic filling level control in the filler tank, complete with product input gate valve dn25, all in AISI-304 stainless steel with high polished finishes for efficient cleaning and sterilizing. Manual height adjustment of the filler for bottle formats adjustment.
Automatic single-head screw capper built with AISI-304 stainless steel, suitable for cylindrical and/or square type bottles. Includes: automatic loading star wheel, automatic electro-magnetic vibration caps feeder, chute with direct positioning device and capping head for aluminum 31x24.5mm screwcaps with pourer insert. Manual height adjustment of the screwcapper for bottle formats adjustment. Other sizes capper available.
Machine is suitable for cylindrical or square shaped glass bottles of size ranging between: minimum 50mm side/180mm height to maximum 110mm side/360mm height. Other bottle formats available as optional.
Easy and fast change of formats and starwheels for different bottles size, with no tools required.
Automatic 100 x 100 mm conveyor belt system built in AISI-304 stainless steel, with belt in high mechanical resistance plastics and static finished bottles end storage. Working height 1,050 +/- 50mm.
Predisposed structural column ready for mounting a capsuler group, either for thermo-retractable plastic capsules (listed optional) or aluminum poly-laminated tin capsules (optional available upon request).
No.1 in-line automatic labeling station, complete with pneumatic bottle lock unit, for application of self-adhesive labels on cylindrical and/or square bottles. Suitable for applying front labels only on square bottles.
No.2 in-line automatic labeling station, for application of self-adhesive back labels only on square bottles.

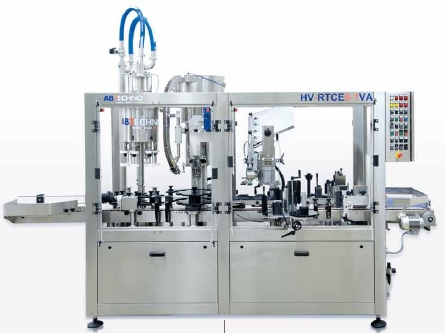

Monoblock structure built with AISI-304 stainless steel and transparent Lexan, with CE certified safety devices systems, mounted on 4 swivelling wheels.
Dimensions: APPROX L=3000mm W=1000mm H= 2200 Weight: 1300kg.
Filling turret rotation: clockwise. Working direction: left to right.
CE certified electric, electronic and pneumatic systems.
Voltage: 415V/50Hz/24V/20 AMP. Three phase - five pins (or four pins upon request). Power absorbtion 2.5Kw
Production speed for 750ml formats approx 800 b/h. 500ml formats approx 1000 b/h. Bottle samples required.
User and maintenance manuals in plain English, with step by step procedures and detailed photos.
|
