| SEMI-AUTOMATIC CAPPERS TSP-2002 TSM-2005 FS-2000.1 |
| THE TSP-2002, TSM-2005 AND FS-2000 SEMI-AUTOMATIC SCREWCAPPERS ARE SUITABLE FOR: |
|
1. |
SCREWCAPPING ANY WINE BOTTLE CLOSED WITH SCREWCAPS. |
|
2. |
SCREWCAPPING CYLINDRICAL, SQUARE AND CONICAL OLIVE OIL BOTTLES CLOSED WITH SCREWCAPS. |
|
3. |
SCREWCAPPING ANY TYPE OF CYLINDRICAL, SQUARE OR CONICAL CONTAINER WITHIN THE DIMENSIONS SPECIFIED BELOW. | |
|
|
| |

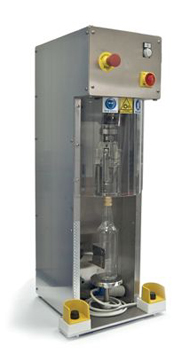

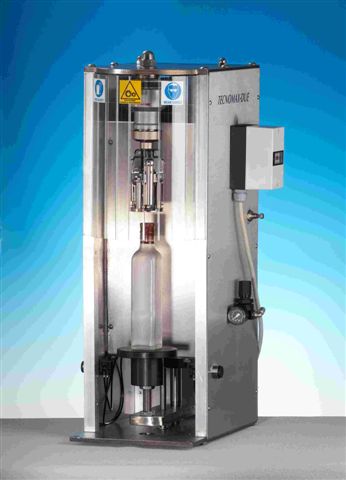

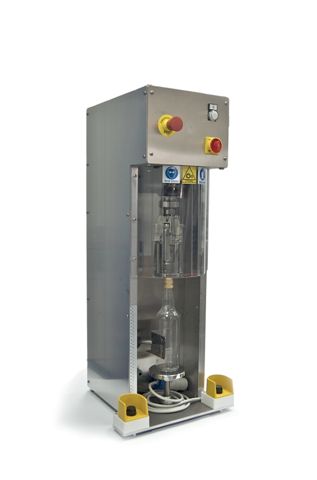

| SEMI-AUTOMATIC PNEUMATIC SCREWCAPPER TSP-2002 STANDARD |
| GENERAL |
|

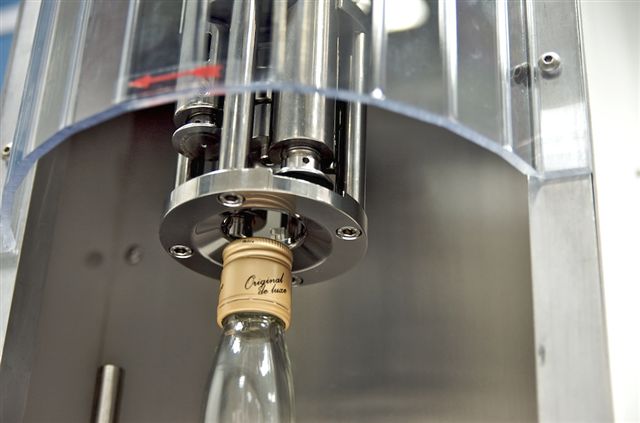

Screwcapping head with 4 rollers - 2 seaming and 2 threading - for high quality screwcaps processing. Head made of stainless steel. One capping head included for 30x60 screwcaps. Other capping heads formats available and/or interchangeable upon request.
Suitable for application of aluminum screwcaps with or without pourer insert. The cap, with or without the pourer insert inside, is positioned manually on the bottle. The bottle is then placed on the plate. Upon pressing two buttons, the plate goes up bringing the bottle to the capping head. The capping head then automatically first pushes the cap with or without insert down into the bottle's neck and then threds and seals the screwcap.
Suitable for bottles in the 375ml, 500ml, 750ml and 1L standard formats. Other formats available upon request.
Easy manual operation actioned by two buttons to be pressed and held during capping cycle.
Body and structure in anti-corrosion galvanized steel, stainless steel and food grade plastics.
Electric power input single-phase 240 V - 50-60Hz. Compressed air required: 6 bar continuous. Compressor 35 L minimum.
Dimensions: 1000mm x 600mm x 660mm. Weight: 75kg
CE certified electric and pneumatic systems. |
|
|
|
| PRODUCTIVITY |
|
Productivity: 350-450 bottles x hour. |
|
OPTIONAL |
| ANTI-CONDENSATION FILTER |
|
|
Optional anti-condensation filter in pneumatic system. | |
|
|
|
| ELECTRONIC CYCLE START |
|
|
Optional electronic system, including a micro and photocell, to start the capping cycle. Instead of pressing the two buttons and holding them until the cycle is complete, the machine "sees" when a bottle is placed on the plate and automatically brings it up to the capping head, and down when finished. Please note that the addition of this optional renders the machine not CE safety compliant. Productivity with the inclusion of this optional increases to 400-500 bottles x hour. | |
|
|
|
| SPARE CAPPING HEAD |
|
|
Optional capping head, additional to the one provided in the standard configuration, for additional screwcaps formats. | |
|
|

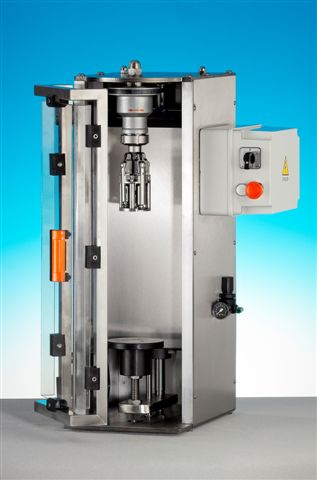

| SEMI-AUTOMATIC PNEUMATIC SCREWCAPPER TSP-2002-D |
| GENERAL |
|
Screwcapping head with 4 rollers - 2 seaming and 2 threading - for high quality screwcaps processing. Head made of stainless steel. One capping head included for 30x60 screwcaps. Other capping heads formats available and/or interchangeable upon request.
Suitable for application of aluminum screwcaps with or without pourer insert. The capping cycle is governed by opening and closing the front door. The cap, with or without the pourer insert inside, is positioned manually on the bottle. With the door open, the bottle is then placed on the plate. By closing the door, the plate goes up automatically, bringing the bottle to the capping head. The capping head then automatically first pushes the cap with or without insert down into the bottle's neck and then threds and seals the screwcap.
Suitable for bottles in the 375ml, 500ml, 750ml and 1L standard formats. Other formats available upon request.
Easy manual operation actioned by closing the front door.
Body and structure in anti-corrosion galvanized steel, stainless steel and food grade plastics. Door in transparent Lexan.
Electric power input single-phase 240 V - 50-60Hz. Compressed air required: 6 bar continuous. Compressor 35 L minimum.
Dimensions: 1000mm x 600mm x 660mm. Weight: 75kg
CE certified electric and pneumatic systems. |
|
|
|
| PRODUCTIVITY |
|
|
Productivity: 400-500 bottles x hour. | |
| OPTIONAL |
| ELECTRONIC CYCLE START |
|
|
Optional electronic system, including a micro and photocell, to start the capping cycle. Instead of pressing the two buttons and holding them until the cycle is complete, the machine "sees" when a bottle is placed on the plate and automatically brings down the capping head, and back up when finished. Please note that the addition of this optional renders the machine not CE safety compliant. Productivity with the inclusion of this optional increases to 500-600 bottles x hour. | |
|
|
|
DOOR OPERATION CYCLE
START |
|
|
Optional capping cycle governed by opening and closing the front door. The cap, with or without the pourer insert inside, is positioned manually on the bottle. With the door open, the bottle is then placed on the plate. By closing the door, the plate goes up automatically, bringing the bottle to the capping head. The capping head then automatically first pushes the cap with or without insert down into the bottle's neck and then threds and seals the screwcap before returning to its rest position. | |
|
|
|
| SPARE CAPPING HEAD |
|
|
Optional capping head, additional to the one provided in the standard configuration, for additional screwcaps formats. | |
|
|
|
| PET SUPPORT |
|
|
Optional PET/plastic bottles support plate. | |
|
|

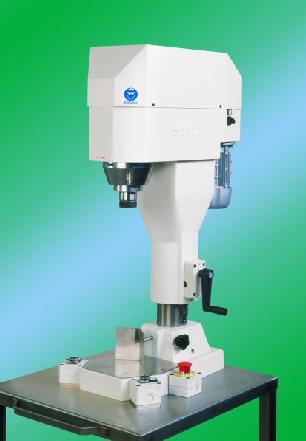

| SEMI-AUTOMATIC MECHANICAL SCREWCAPPER TSM 2005 STANDARD |
| GENERAL |
|
Screwcapping head with 4 rollers - 2 seaming and 2 threading - for high quality screwcaps processing. Head made of stainless steel. One capping head included for 30x60 screwcaps. Other capping heads formats available and/or interchangeable upon request.
Suitable for application of aluminum screwcaps with or without pourer insert. The cap, with or without the pourer insert inside, is positioned manually on the bottle. The bottle is then placed on the plate. Upon pressing two buttons, the capping head comes down on the bottle and automatically first pushes the cap with or without insert down into the bottle's neck, then threds and seals the screwcap before going back up to its rest position.
Suitable for bottles in the 375ml, 500ml, 750ml and 1L standard formats. Other formats available upon request.
Easy manual operation actioned by two buttons to be pressed and held during capping cycle.
Body and structure in anti-corrosion galvanized steel, stainless steel and food grade plastics.
Electric power input single-phase 240 V - 50-60Hz.
Dimensions: 1000mm x 600mm x 660mm. Weight: 100kg
CE certified electric and pneumatic systems. |
|
|
|
| PRODUCTIVITY |
|
|
Productivity: 400-500 bottles x hour. | |
| OPTIONAL |
|
ELECTRONIC CYCLE START |
|
|
Optional electronic system, including a micro and photocell, to start the capping cycle. Instead of pressing the two buttons and holding them until the cycle is complete, the machine "sees" when a bottle is placed on the plate and automatically brings down the capping head, and back up when finished. Please note that the addition of this optional renders the machine not CE safety compliant. Productivity with the inclusion of this optional increases to 500-600 bottles x hour. | |
|
|
|
|
DOOR OPERATION CYCLE
START |
|
|
Optional capping cycle governed by opening and closing the front door. The cap, with or without the pourer insert inside, is positioned manually on the bottle. With the door open, the bottle is then placed on the plate. By closing the door, the plate goes up automatically, bringing the bottle to the capping head. The capping head then automatically first pushes the cap with or without insert down into the bottle's neck and then threds and seals the screwcap before returning to its rest position. | |
|
|
|
| SPARE CAPPING HEAD |
|
|
Optional capping head, additional to the one provided in the standard configuration, for additional screwcaps formats. | |
|
|
|
| PET SUPPORT |
|
|
Optional PET/plastic bottles support plate. | |
|
|

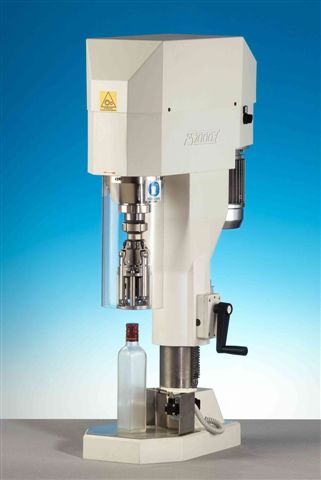

| SEMI-AUTOMATIC MECHANICAL SCREWCAPPER FS-2000.1 STANDARD |
| GENERAL |
|
Screwcapping head with 4 rollers - 2 seaming and 2 threading - for high quality screwcaps processing. Head made of stainless steel. One capping head included for 30x60 screwcaps. Other capping heads formats available and/or interchangeable upon request.
Suitable for application of aluminum screwcaps with or without pourer insert. The cap, with or without the pourer insert inside, is positioned manually on the bottle. The bottle is then placed on the plate. Upon pressing two buttons, the capping head comes down on the bottle and automatically first pushes the cap with or without insert down into the bottle's neck, then threds and seals the screwcap before going back up to its rest position.
Suitable for bottles in the 375ml, 500ml, 750ml and 1L standard formats. Other formats available upon request.
Easy manual operation actioned by two buttons to be pressed and held during capping cycle.
Body and structure in anti-corrosion galvanized steel, stainless steel and food grade plastics.
Electric power input single-phase 240 V - 50-60Hz.
Dimensions: 1000mm x 660mm x 500mm. Weight: 110kg
CE certified electric and pneumatic systems. |
|
|
|
| PRODUCTIVITY |
|
|
Productivity: 400-500 bottles x hour. | |
| OPTIONAL |
| THREE PHASE POWER |
|
|
Optional 415 V - 50-60Hz Electrical power input. | |
|
|
|
| ELECTRONIC CYCLE START |
|
|
Optional electronic system, including a micro and photocell, to start the capping cycle. Instead of pressing the two buttons and holding them until the cycle is complete, the machine "sees" when a bottle is placed on the plate and automatically brings down the capping head, and back up when finished. Please note that the addition of this optional renders the machine not CE safety compliant. Productivity with the inclusion of this optional increases to 500-600 bottles x hour. | |
|
|
|
| SPARE CAPPING HEAD |
|
|
Optional capping head, additional to the one provided in the standard configuration, for additional screwcaps formats. | |
|
|
|
| PET SUPPORT |
|
|
Optional PET/plastic bottles support plate. | |
